Heated Valves and Arrays

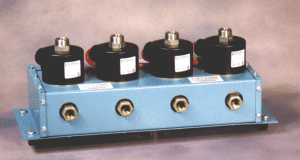

VAL-1115 FOUR-POSITION ARRAY

Download our Product Information Sheets or Request A Quote.

Heated Valves and Valve Arrays



Request Heated Valve and Array Quote

For more than 15 years, UNIQUE has been supplying highly accurate heated solenoid valves and valve arrays for emissions sampling, cal gas delivery, leak checking, and control of condensation.  As always, we are here to fill your exact needs and are more than willing to add options and custom configure any products we offer.  Please feel free to e-mail or call us with your specific questions.

UHPI offers heated solenoid arrays starting at one position and going to as many positions as you need and in any configuration needed.  Our most common arrangements are multi-input, single output arrays for selecting from multiple sampling points.  This allows you to pull samples from multiple locations and feed a single analyzer with samples, cal gasses, etc.

Valves and arrays are available rated at up to 200° C continuous operation. You may choose from seals made with Viton®, Teflon® or Silicone; 120 VDC, 24 VDC and 120 VAC coil voltages.  Stainless Steel is the typical construction material, but plastic, brass and other materials are available as needed.

See some of the examples below of our products.  Feel free to contact us with your requirements for custom configurations.

Single Position Valves

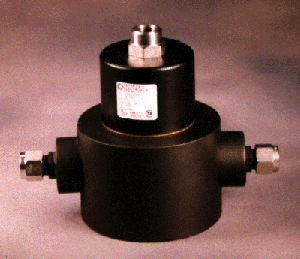

Valve Model VAL-1115 shown with swage ports MODEL VAL-1115

Three-Way Heated Valve
Up to 400° F operation
.50 CV Factor
160 PSI maximum pressure differential
Seals from Teflon®, Viton®, Silicone
12 VDC, 24VDC, 120 VAC Standard Coil Voltages
Self limiting or temperature controller heater control
Any voltage/Hz rating available (please specify)
Any port size and type available (please specify)

The VAL-1106 is used in Automotive, CEM, Diesel and Laboratory application.  Media flows from common port through NC port (heated) or to top "coil" port (un-heated).  No pressure differential when running in reverse flow.  Typically used to introduce calibration gases or other constituents into a sample stream.

MODEL VAL-1106

Two-Way Heated Valve
Up to 400° F operation
.78 CV Factor
100 PSI maximum pressure differential
Seals from Teflon®, Viton®, Silicone
12 VDC, 24VDC, 120 VAC Standard Coil Voltages
Self limiting or temperature controller heater control
Any voltage/Hz rating available (please specify)
Any port size and type available (please specify)

The VAL-1106 is used in Automotive, CEM, Diesel and Laboratory application.  Media flows from inlet to outlet port, no pressure differential rating for reverse flow.  Ideal for sample on/off and leak check applications.

You may select the type and size of your inlet and outlet ports, temperature range and type of sensor, operational voltage, and a wide variety of special options. Differential taps, over-temperature protection, and thermocouple wells are just a few of the special features available.  Call us or e-mail our sales department for more information!
